SMV1215-001 VM1 的参数 |
| 反向电压VR
Reverse Voltage |
12V |
| 电容值C
Diode capacitance |
9.5pF |
| @反向电压VR
@Reverse Voltage |
1V |
| 电容值C
Diode capacitance |
2pF |
| @反向电压VR
@Reverse Voltage |
4V |
| 电容比
Capacitance ratio |
5 |
| Description & Applications |
Hyperabrupt Junction Tuning Varactors Description The SMV1211–SMV1215 series of silicon hyperabrupt junction varactor diodes is designed for use in VCOs with low tuning voltage operation. This family of varactors is characterized for capacitance and resistance over temperature. SPICE models are provided. High capacitance ratio, C1V/ C4V = 5 Multiple packages SOT-23, SOD-323, SC-70 and SC-79 Designed for high volume commercial applications/ SPICE models are available |
| 描述与应用 |
超突变结调谐变容二极管 描述 SMV1211 SMV1215系列硅超突变结变容二极管是专为使用在VCO调谐电压低 操作。这一系列的变容二极管电容的特点是和电阻温度过高。 SPICE模型 高电容率，C1V/C4V =5 多个软件封装SOD-323，SOT-23，SC-70，SC-79 为大批量商业应用而设计 SPICE模型可行 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |

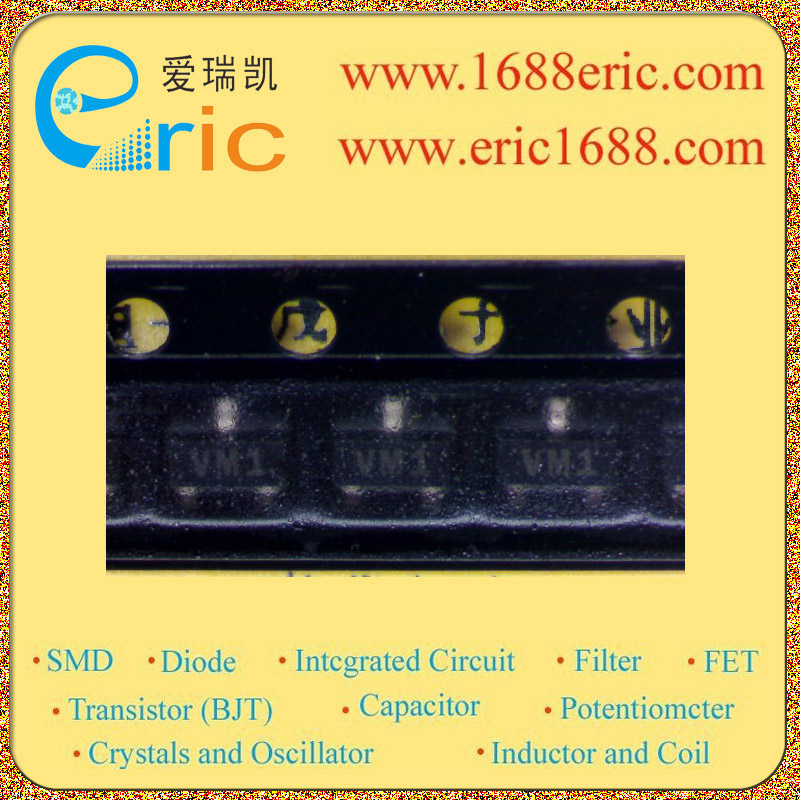

| SMV1215-001 |
VM1 |
ALPHA |
05+ |
SOT-23/SC-59 |
1800 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
|
|
|
